Upper Extremities

The Globus upper extremity portfolio offers solutions for the clavicle, shoulder, forearm, hand, and wrist through versatile plating options and intuitive instruments.

Clavicle

ANTHEM™ Clavicle Fracture System

The ANTHEM™ Clavicle Fracture System provides intraoperative versatility to treat a variety of clavicle fractures. A comprehensive instrument set featuring radiolucent retractors and innovative reduction clamps provides system efficiency and procedural ease. Each plate has a unique, research-driven design to anatomically fit where clavicle fractures most commonly occur.

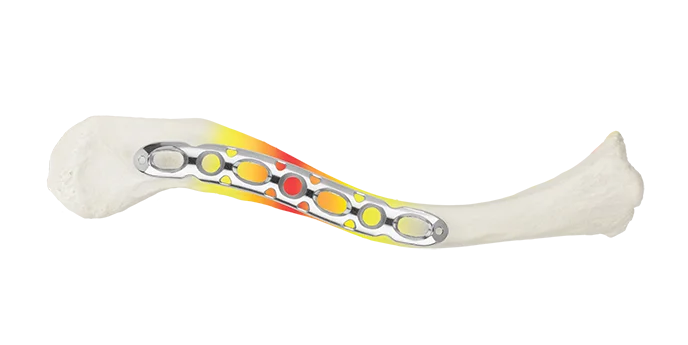

Research-Driven Design

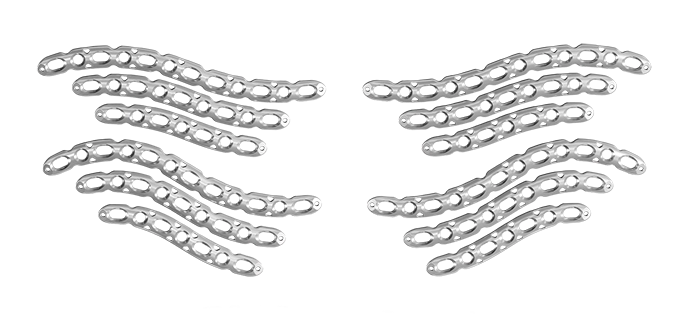

ANTHEM™ MIDSHAFT42™ plates feature a unique, research-driven design engineered to fit the anatomical location where clavicle fractures most commonly occur—centered at 42% of the overall clavicle length.1 The lateral shift in plate center improved simulated plate fit among a set of 166 clinical midshaft fracture regions.1

ANTHEM Clavicle
ANTHEM Clavicle
Enhanced Functionality

The positioning slot and screw allow multidirectional fine-tuning of plate position. Triangular suture holes allow for convenient suturing after securing the plate to bone.

Intuitive, Radiolucent Instruments

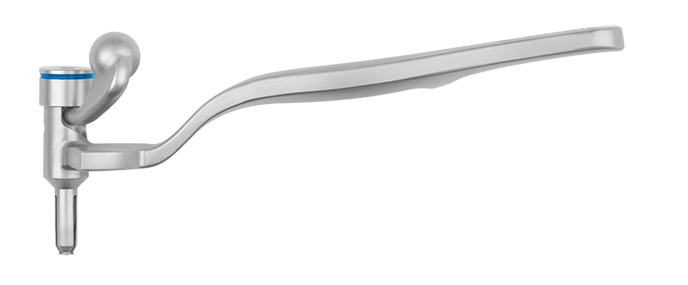

Radiolucent retractors aid in fracture-site visibility and may help reduce surgical time. Speed Lock Drill Guides lock to the plate at the nominal screw trajectory.

ANTHEM Clavicle Speed Lock Drill Guide

Proximal Humerus

ANTHEM™ Proximal Humerus Fracture System

The ANTHEM™ Proximal Humerus Fracture System features polyaxial locking technology for intraoperative versatility and is designed to streamline procedural flow during fracture fixation.

Anatomic Contour

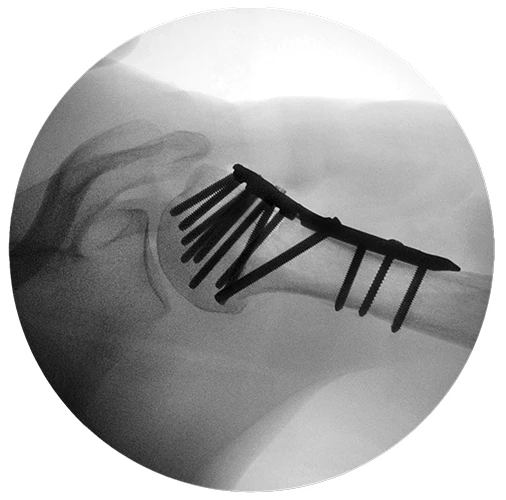

The low-profile plate is contoured to sit low to avoid acromial impingement. Polyaxial locking calcar screws are designed to provide ideal bone purchase following optimized plate placement to minimize the risk of varus collapse.

ANTHEM Proximal Humerus fluoro
ANTHEM Proximal Humerus

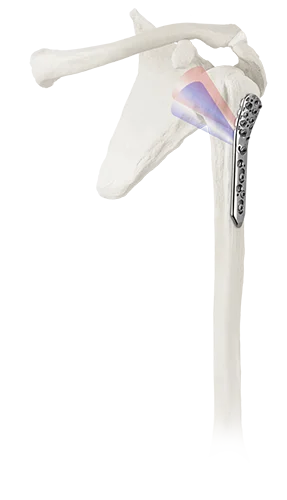

Multiple Calcar Solutions

The system features two polyaxial locking calcar screws that allow for a ±20° cone of angulation and one fixed angle calcar screw with an optimized shaft-head inclination angle. Cannulated screws are also available and allow for excellent plate placement.

Intuitive, Radiolucent Instruments

Radiolucent retractors aid in visibility of the fracture site and may help reduce surgical time.

ANTHEM Proximal Humerus instrument

Hand & Wrist

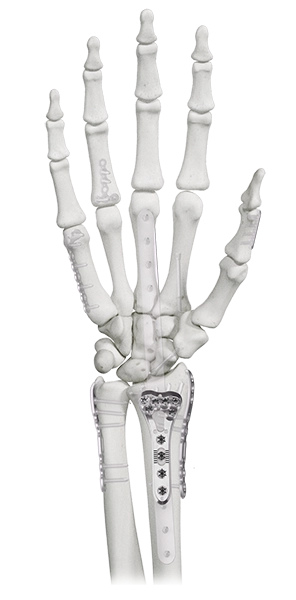

ANTHEM™ Distal Radius Fracture System

The ANTHEM™ Distal Radius Fracture System is a comprehensive fixation system designed to treat a wide variety of wrist fractures with anatomically contoured plates for intraoperative versatility. Polyaxial locking technology allows for ±20° of angulation (40° cone) in polyaxial volar, fragment-specific, and diaphyseal-metaphyseal plates. MonoAx™ locking technology enables a thin volar plate design to facilitate distal plate placement in the treatment of complex, intra-articular fractures. Innovative instruments allow for secure retraction and streamlined plate positioning, drilling, and screw insertion.

Comprehensive Plate Offering

The comprehensive system offers implants to address a wide variety of wrist fractures, in stainless steel or titanium alloy.

ANTHEM Distal Radius
ANTHEM Distal Radius instruments
Streamlined Instruments

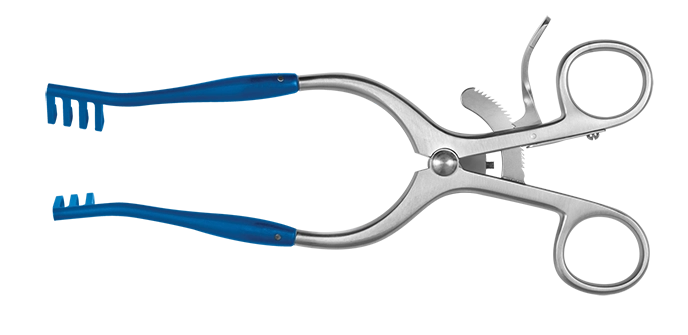

One drill and driver streamline the procedure. The stabilizing Radiolucent Weitlaner is designed for secure retraction during the procedure. The Speed Lock Drill Guide is designed to quickly and rigidly attach to polyaxial plates without threading. Calibrated drill bits allow for streamlined procedural flow. MonoAx™ Threaded Drill Guides and K-Wire Sleeves help confirm screw trajectories prior to insertion in MonoAx™ plates.

Optimized Case Flow

The graphic case trays are designed for an optimized procedural flow. The modular graphic case design allows for customization based on surgeon preference and fracture pattern.

Positioning Slot and Screw

The system allows multidirectional fine-tuning of plate position, and accepts a 2.5mm Positioning Screw and 2.5mm Non-Locking Screw.

ANTHEM Distal Radius case
Universal Technologies

Cannulated Screws

Our headed and headless cannulated screw systems are designed to address a variety of adult and pediatric applications and deliver operative versatility and efficiency through an expansive portfolio of thoughtfully designed implant options and instruments.

CAPTIVATE™ SOLA Headless Compression Screw System

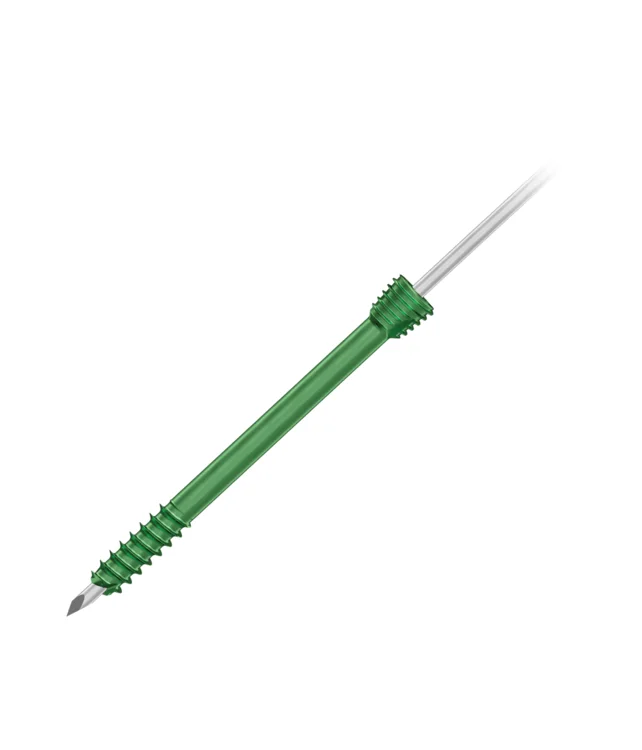

The CAPTIVATE™ SOLA Headless Compression Screw System is a comprehensive cannulated headless screw system that features a differential thread pitch to address fracture repair, bone reconstruction, osteotomy, and arthrodesis procedures.

CAPTIVATE Headed screws

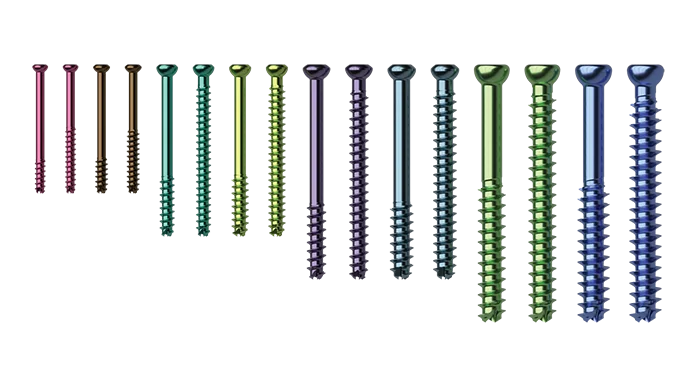

CAPTIVATE™ Headed Cannulated Screw System

CAPTIVATE™ Headed Cannulated Screws deliver intraoperative versatility and efficiency through ample implant options and shared instruments for paired screw sizes. Each set provides paired screw sizes: 2.5/3.0mm, 3.5/4.0mm, 4.5/5.5mm, and 6.5/7.5mm. CAPTIVATE™ screws are suitable for treatment of a wide variety of adult and pediatric applications.

CAPTIVATE Headless

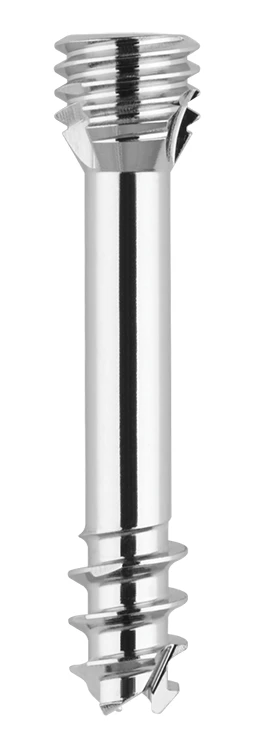

CAPTIVATE™ Headless Compression Screw System

CAPTIVATE™ Headless Compression Screws are used for fracture repair, osteotomy fixation, joint fusion, and reconstruction throughout bony anatomy. The screws can be used independently or in conjunction with plate fixation and are offered in varying lengths and diameters.

Fragment Fracture Systems

Our fragment fracture systems provide a comprehensive offering of plate styles and lengths, screw options and contouring instruments to accommodate varying anatomies and fracture patterns for upper and lower extremity trauma.

ANTHEM Small Fragment plates

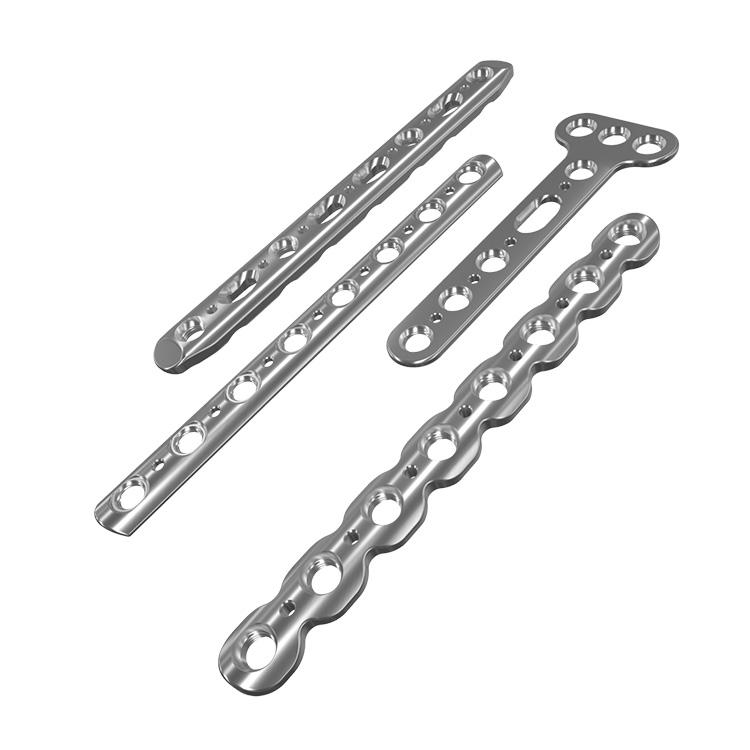

ANTHEM™ Small Fragment Fracture System

The ANTHEM™ Small Fragment Fracture System offers numerous treatment options for upper and lower extremity trauma. The system features a comprehensive set of implants and instruments designed to improve fracture care. Multiple plate types are offered with screw lengths up to 100mm. Innovative instruments are designed to improve procedural flow. Radiolucent Hohmann and Weitlaner retractors are designed to enhance visibility of the fracture site. Versatile bending irons and clamps help to expedite plate contouring.

ANTHEM Mini Fragment

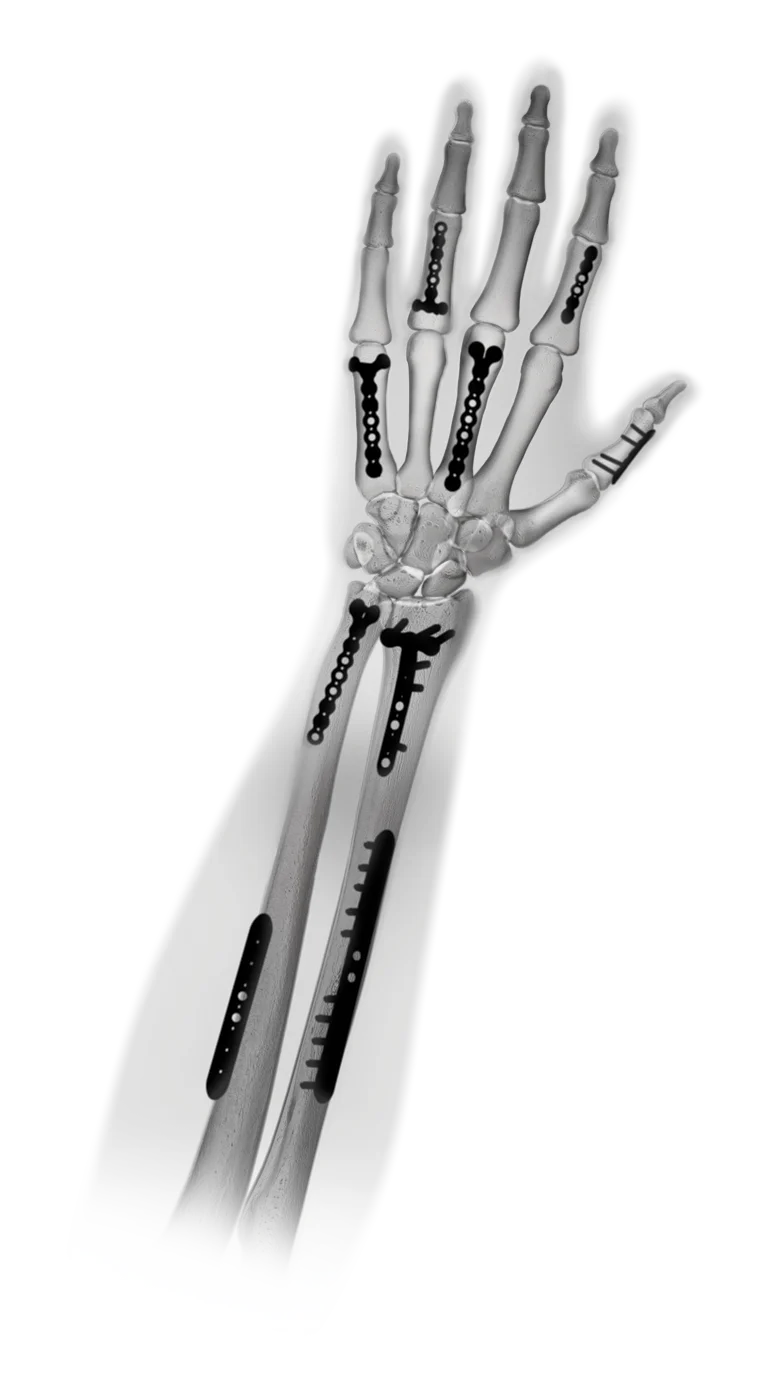

ANTHEM™ Mini Fragment Fracture System

The ANTHEM™ Mini Fragment Fracture System provides intraoperative versatility to treat a variety of traumatic fractures. A comprehensive set featuring versatile implant options and innovative instruments offers system efficiency and procedural ease.

  1. Murthi et al. Where do midshaft clavicle fractures really occur? A novel fracture zone study [abstract]. In: 64th Annual Meeting of the Orthopedic Research Society; 2018 Mar 10-13; New Orleans, LA. Rosemont (IL).
  2. Data on file
