Laminoplasty
We provide a comprehensive cervical laminoplasty portfolio with streamlined instruments and a variety of plate and spacer offerings for various patient anatomies.
Fixation

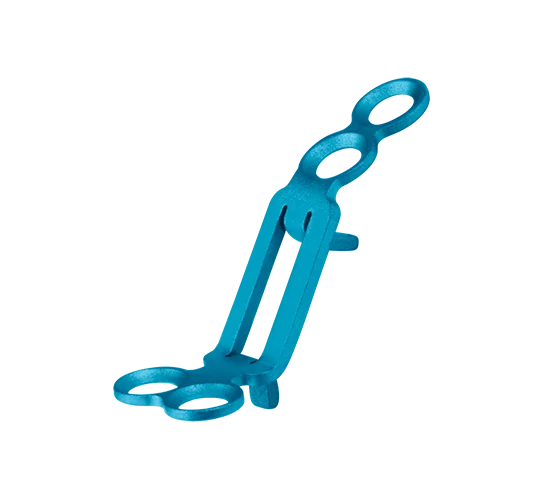

CANOPY™ Laminoplasty Plate
CANOPY™ is a complete open door laminoplasty system offering a controlled approach consisting of streamlined instruments and a variety of plate and spacer options for excellent intraoperative adaptability.
Comprehensive Plate
- Double bend plate design
- Inline and adjacent screw hole options
- Available in 5–13mm in 2mm increments
- Slide-on PEEK spacer assembly
- Shelf design to maintain intralaminar opening and provide laminar support
Precise Instruments

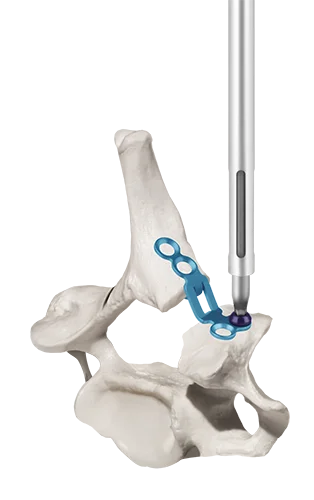

- Easy-release pushbutton screwdriver, drill-through plate holder, and versatile self-centering drill bits are provided
- Unique easy-release push button mechanism within the driver helps to preserve bone purchase during release
- Drill-Through Plate Holder is designed to maintain control of the plate during drilling and screw insertion
- Self-Centering Drill Bits allow for single-handed screw preparation with or without a plate holder

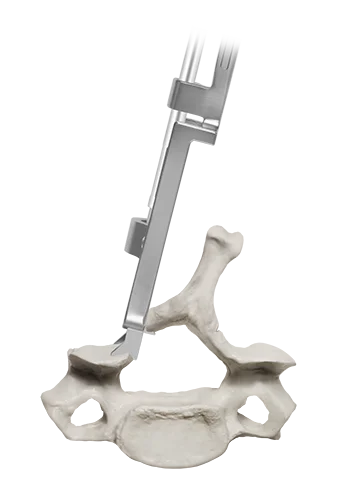

Controlled Decompression
- An innovative laminar distraction device is designed for controlled decompression up to 13mm
- Open Door Distractor allows controlled decompression by distracting the lamina, engineered to maintain the intralaminar opening and determine plate size prior to insertion

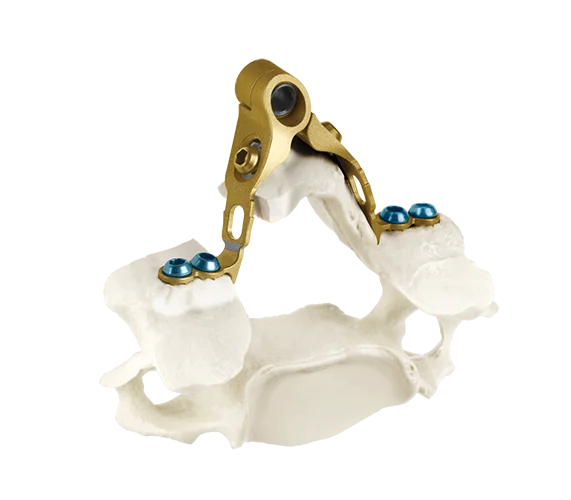

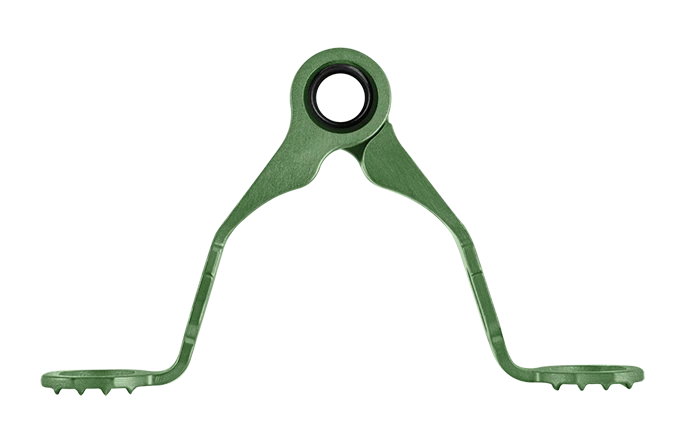

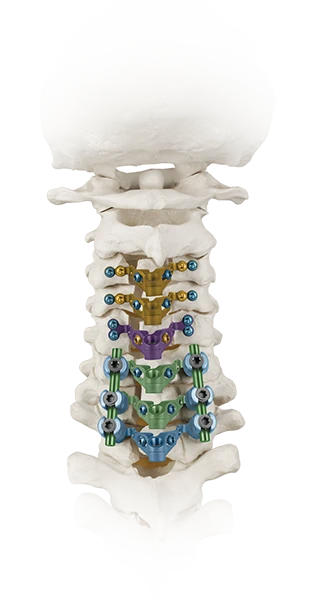

HAVEN™ Laminoplasty Plate
HAVEN™ is an adjustable dual laminoplasty plate that offers bilateral support to maintain the natural posterior structure. The plates are available in a variety of configurations for use with or without posterior cervico-thoracic fixation.
Protective Barrier
- HAVEN™ is designed to bridge the posterior arch to provide structural support and protect the spinal cord
- Maintaining the structure of the posterior arch provides a protective barrier against local epidural scarring and aids in helping to prevent postoperative spinal instability1
Bilateral Advantage
- Bilateral fixation to the lateral masses provides a rigid supporting structure to bridge the posterior arch with one continuous implant
Natural Anatomic Design
- Anatomical implant design mimics intact anatomy
Prioritizing Clinical Education
Over the past 20 years, we have evolved our programs in partnership with our renowned faculty. We provide learning experiences spanning online educational resources to surgeon-led didactic courses with hands-on training, mentorship opportunities, and field-based training support.
- Takayasu M, Takagi T, Nishizawa T, Osuka K, Nakajima T, Yoshida J. Bilateral open-door cervical expansive laminoplasty with hydroxyapatite spacers and titanium screws. J Neurosurg. 2002;96(1 Suppl):22-28.
